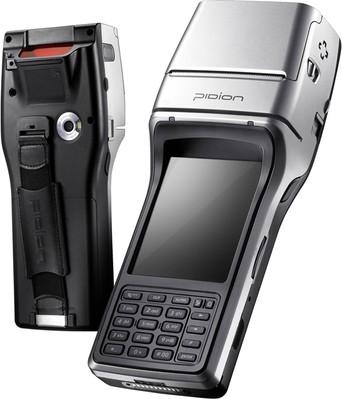

BIP-1300-產品特征

- 功能

BIP-1300是集磁條卡讀卡功能、多業務路由器、IC讀卡器、熱敏打印機、聲音和數據交換及無限寬帶于一體的PDA掌上電腦。該款機在銷售點系統、收據打印，票務查詢和高速同步數據傳輸上的功能，明顯的提高了銷售效率。

- 安全性

為交易和支付帶來安全保證
-磁條卡讀卡功能(1/2/3磁道，可雙向刷卡)，通過ISO 7810、ISO 7811、 ISO 7813 認證。
-IC卡讀卡器。
-接觸讀卡功能：通過PCI PED, EMV Level 1&2, PBOC Level 1&2 approved, ISO 7816 , 中國銀聯認證。
-非接觸讀卡功能：通過ISO 14443 A/B, ISO 15693認證。

- 兼容性

BIP1300內置Windows移動操作系統，可以輕松與其它傳統的設備和電腦進行串聯。此款機可以讓你沒有任何限制下處理所有的工作文檔、客戶、存貨清單、貨物運輸甚至更多的實時信息。

- 工藝性

-3.5英寸的顯示屏可以讓您享受極佳的圖標繪制和閱讀功能。
-觸摸屏和功能鍵讓您進行簡單快捷的操作。
-流線型設計、超薄及極輕的機型款式讓您在工作當中只需一只手便可以使用。

BIP-1300藍鳥數據采集器-參數配置

Product	BIP-1300	PCI Compliance BIP-1300
Physical Characteristics
Dimensions (W x H x D)	87(min.74) x 218 x 56.2(min.29)mm / 3.4(min.2.9) x 8.6 x 2.2(min 1.1) inch
Weight	Excluding battery: 412g / Including standard battery: 507g
Display	3.5" QVGA with backlight, TFT-LCD, 260K, 240 x 320
Touch Panel	Analog resistance type
Keypad	Numeric / QWERTY
Standard Battery	Rechargeable, 7.4V, 2,000mAh, Li-ion
Expansion Slot	Customer-accessible SD slot for removable memory cards up to 2G
SIM/SAM Slot	1 SIM / 3 SAMs
Printer	2" thermal Printer (max. 90mm/sec)
Audio	Speaker, Headset jack
Camera	2 megapixel color camera
GPS(optional)	Integrated GPS with Network Independent A-GPS
Performance Characteristics
CPU	PXA 270, 520MHz
OS	Windows Mobile 5.0 / Windows CE 5.0	Windows Mobile 5.0
Memory	128MB RAM / 128MB ROM (up to 256MB)
Interface	RS-232C, USB 1.1 Host & Client, Ethernet via cradle
User Environment Characteristics
Operating Temp	-20°C to 55°C / -4°F to 122°F
Storage Temp	-30°C to 70°C / -22°F to 158°F
Humiditiy	93% non-condensing
Drop Spec	4ft. / 1.2m drop to steel surface with silicon case, 2drops per 6 sides
Integrated Radio
WWAN Radio Options	GSM / GPRS / eGPRS (850, 900, 1800, 1900MHz) or CDMA(800, 1800MHz)	GSM / GPRS / eGPRS (850, 900, 1800, 1900MHz)
WLAN Radio	IEEE 802.11b/g
WPAN Radio	Bluetooth Class Ⅱ V1.2, IrDA 1.2
Data Capture
Barcode Scanner Options	1D&PDF417 Laser Class II ID&2D CMOS Imager
Card Reader
MSR	Bi-directional, Track1,2,3, ISO 7810, ISO 7811, ISO 7813
IC Card Reader	EMV Level 1&2, PBOC Level 1&2, China UnionPay approved, ISO 7816
RF Card Reader (optional)	ISO 14443 A/B (MIFARE, Calypso), ISO 15693
PIN Transaction (optional)	-	PCI PED 2.0, APACS Common Criteria, GIE CB Approved
